Tank Wall Welding Type (Transparent): SG-1T
Tank Wall Welding Type (Reflex): SG-1R |
■
|
Application
and Features |
| ● |

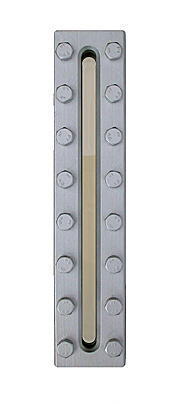

Models SG-1T and SG-1R are the sight glasses to see the
level or state of remaining stuff in a vessel, which
are mounted directly to a vessel by welding. When longer
visible length is required, multiple sections are to
be coupled vertically. Blind portion in a coupled installation
is 40mm between the two sections.
|
| ■ |
Standard Specification |
| |
Material： Carbon Steel, Stainless Steel, Alloys |
| |
（Unit: mm） |
| |
Glass
No. |
4 |
5 |
6 |
7 |
8 |
9 |
Body Length |
225 |
255 |
285 |
315 |
355 |
375 |
Visible Length |
165 |
195 |
225 |
255 |
295 |
315 |
Weight (C.S.Mat’l) kg |
7.0 |
8.0 |
9.0 |
10.0 |
11.5 |
13.0 |
|
|
|
|
